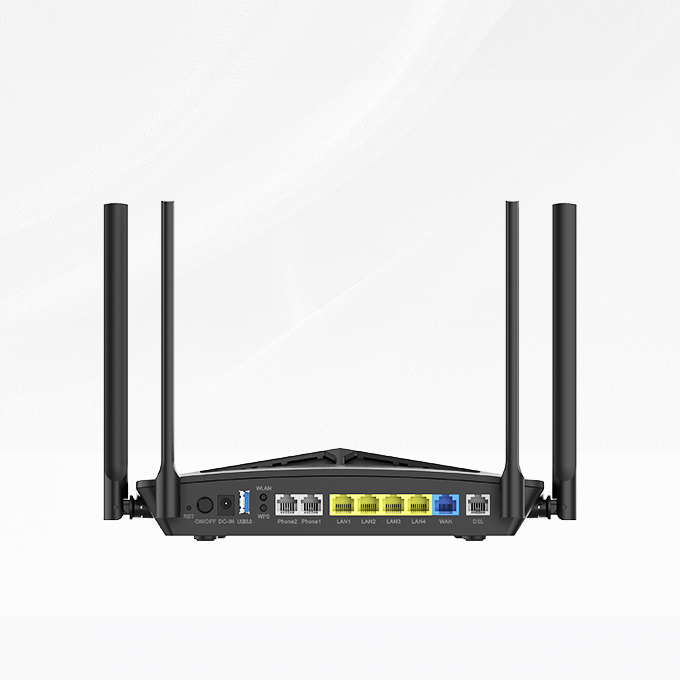

AZ634 4GE AX3000 VDSL IAD

AZ634 是一款 WiFi 6 Gigabit 双频无线 IAD，升级到最新的 802.11ax 技术标准，并集成了 VDSL / VoIP / 无线 AP。它是适用于家庭、宽带远程办公室和小型 SOHO 网络的安全解决方案。

产品特点：

4 个 10/100/1000BASE-T 以太网 RJ45 端口;
支持 802.11n/ax 2T2R 速度高达 600Mbps;
支持高达 2400Mbps 的 802.11ac/ax 2T2R 速度;
支持 1 个 FXS 端口;● 支持 1 个 USB3.0 端口;

产品参数

资料下载

功能参数
产品型号	AZ634 4GE AX3000 VDSL IAD
芯片组	1GHz ARM 256K L2 cache dual-core；EN7562CT
Wi-Fi标准	MTK7916AN+MTK7976DN
Wi-Fi标准	2.4G&5G：
设备接口	LAN: 3* 10/100/1000Mbps auto MDI/MDI-X RJ-45 portsWAN: RJ-11 Port with 35b
设备接口	LAN: 410/100/1000 auto MDI/MDI-X RJ-45 ports Voip: 1RJ-11 port USB: 1*USB3.0
内存	NAND FLASH 1Gbit(128MB)/DDR3 4Gbit（512MB）
天线	2*5G 5dBi External antennas;
天线	12.4G 5dBi External antennas 12.4&5G 3~5dBi Dual-band External antennas
规格	170X137.5X55mm (length x width x height)
适配器	DC12V Without USB 2A
DSL协议	G.992.1 (G.dmt), G.992.2 (G.lite), G.992.3 (ADSL2), G.992.5 (ADSL2+) Annex A/B/I/J/M/L ADSL physical connection ATM AAL5 RFC 2684/1483 G.993.2 VDSL2 (Up to 35b profile) Band plan: Annex A/B Dual latency UPBO/DPBO Double-end line test (DELT) Auto SRA Bit Swap
网络协议	IPv4/IPv6 Dual Stack TCP/UDP/ICMP HTTP/HTTPS/FTP/TFTP/TELNET/SSH VLAN NAT/PAT/ALG UPnP IGD with NAT traversal capability RIP v1/v2 DNS relay Dynamic DNS DHCP client/server/relay IGMP and MLD snooping/proxy
WAN	Static IP WAN connection DHCP client WAN connection PPPoE WAN connection 3G/4G dongle VPN client/passthrough Router/Bridge Mode
安全	Stateful Packet Inspection (SPI) Denial of Service (DoS) prevention Multiple VPN (IPSec, PPTP, L2TP) passthrough MAC/IP/URL filtering Black and white list Port mapping/DMZ/Virtual server Remote Access Control
管理	TR-069 remote management Web GUI management Logs and statistics Remote upgrade by HTTP Saving/Restoring configuration to/from file SNTP and time zone
应用
使用环境	Working temperature: 0°C—40°C Working humidity: 5—95%
存储环境	Storage Temperature: -40 ~ +70°C Storage Humidity: 5 ~ 95% Non-condensing
